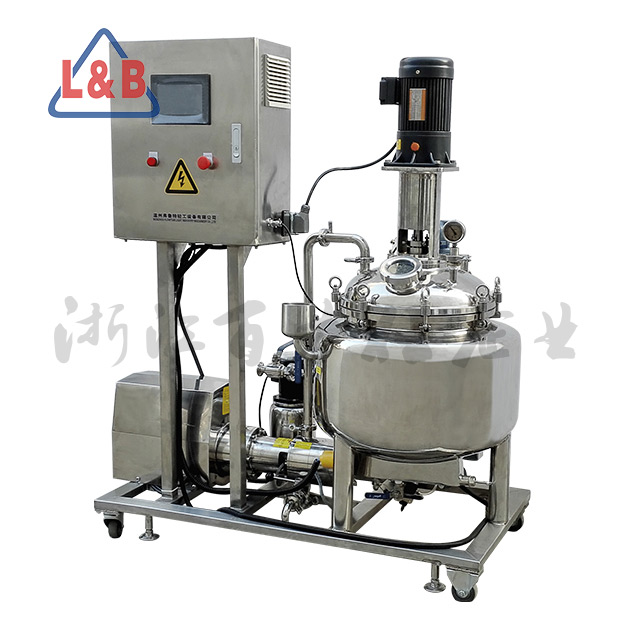

PLC control emulsifying system
Product usage:This unit is suitable for viscosity of less than 30000CPS material emulsified reactions. Easy operation, stable performance, good homogeneity, easy to clean, reasonable structure, small footprint, high degree of automation, which enables remote control and other features.
Product specification:1, the heating method: to use steam or electric heating, this machine uses electric heating.1.Heating: can be steam or electric heating, the machine uses electric heating
2.Temperature control:Thermocouple temperature measurement, and connect with temperature controller for control and monitor,can adjust the level of material temperature.
3.Tank: mirror polished inner surface roughness Ra≤0.4um
4.Cover: head structure,pressure manhole,be evacuated
5.The inner tank bottom structure: spinning into R angle, no dead space within the tank after welding polishing,drain material no retention
6.Jacketed type: full jacket, coil, miller plate etc.
7.Insulation materials: polyurethane foam, environmental protection, good insulation properties
8.Shell surface treatment: mirror polished or matt colors or 2B 2B frosted matte processing
9.Stirring device: Top center screw and ribbon blender.
10.Emulsification device: three emulsion pump, emulsion homogeneous good performance.
11.Optional accessories: PLC control box,network remote control box, data logger, pressure level, a sight glass, pressure gauge, hand hole, vacuum pumps, inverter, etc.
